Example: Define the control and audio/video connections

This section discusses using Composer Pro views to define AV connections.

Note: This process follows “Verifying the network connections.”

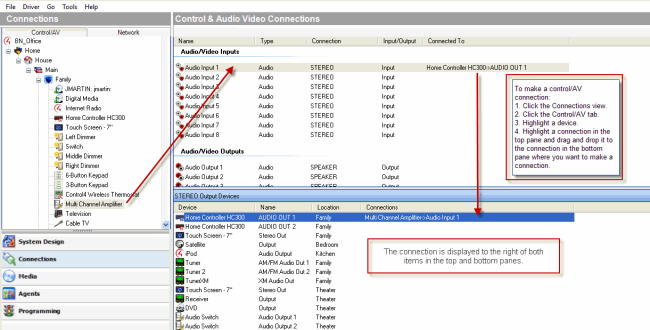

Control/AV connections are visible when you select the Control/AV tab in the Connections view. The Control/AV tab lets you define the physical connections between the controller or other devices, including AV signals, IRs, relays, contacts, and/or serial connections.

Tip: If connections do not appear as needed, edit the driver to create the needed connections. See “Editing a driver using the Driver Wizard.”

The following steps are described in the next sections:

“Verify that all control and AV connections use room properties”

“Disconnect/Remove control/AV connections”

“Re-assign control/AV connections”

“Update connections in the project if you change locations”
