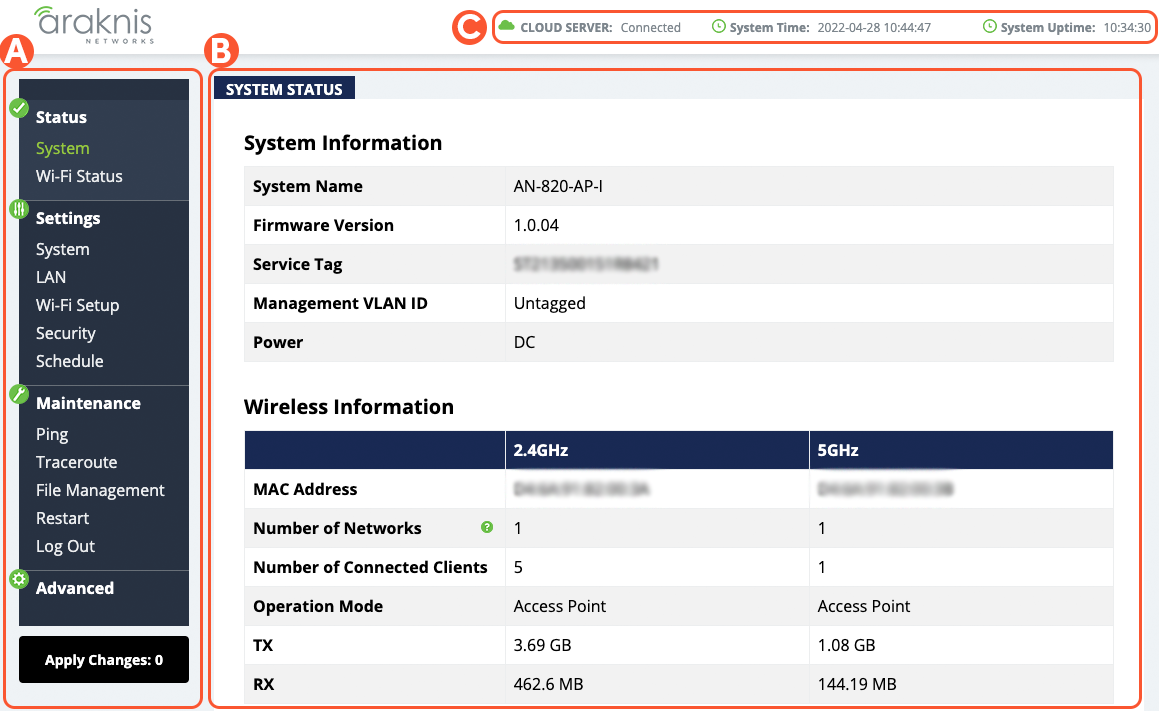

Web Interface Overview

  1. Main Navigation Menu: Use the sub-menus under the Status, Settings, Maintenance, and Advanced headings to configure and maintain the access point. Click Apply Changes to review and apply the changes saved in menus.

  2. Main Window: The main window displays the currently selected sub-menu.

  3. Top Bar: The top bar displays the current connection status to the OvrC server, the current internally-set system time, and the current system uptime in Days:Hours:Minutes.

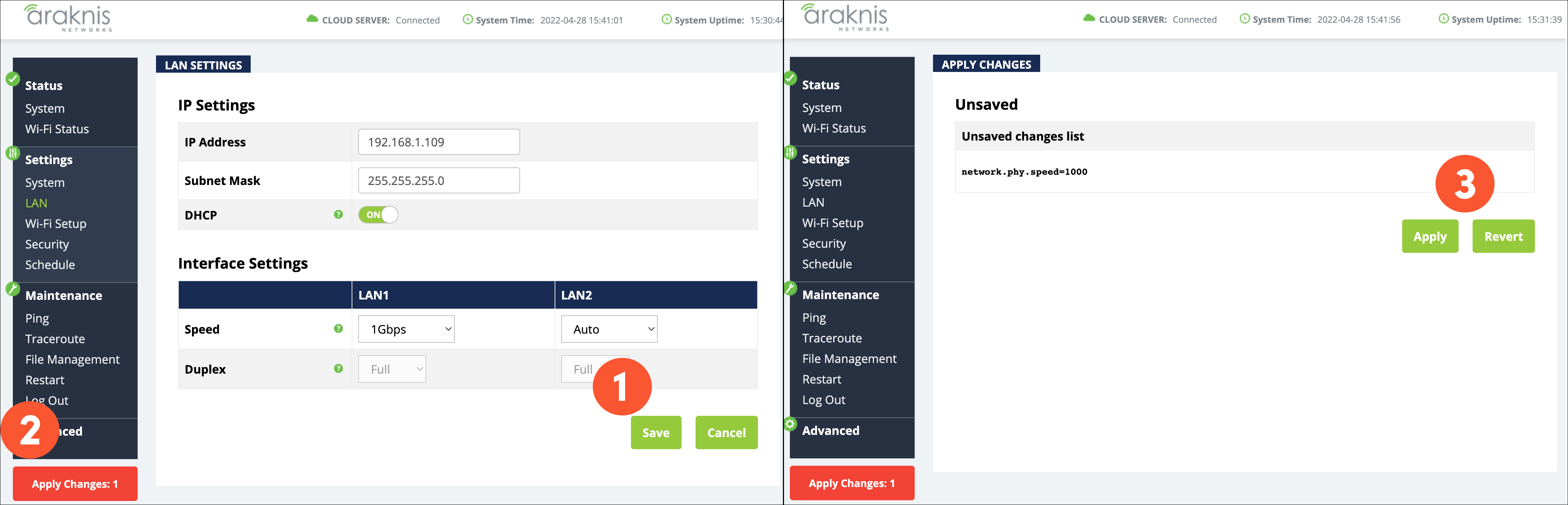

Applying changes to the access point

  1. After making changes to settings on a menu page, click the Save button on the menu to hold the new settings in the Apply Changes field.

  2. After all desired changes have been made, click Apply Changes to review the new settings.

  3. Click Apply to make the changes or Revert to cancel the changes.
