Installation

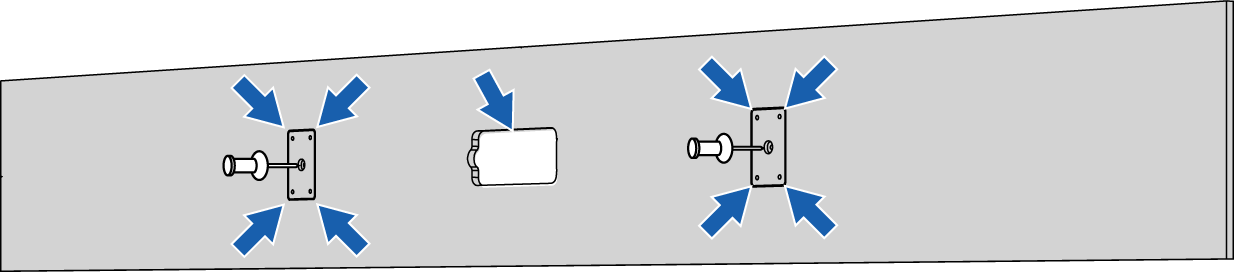

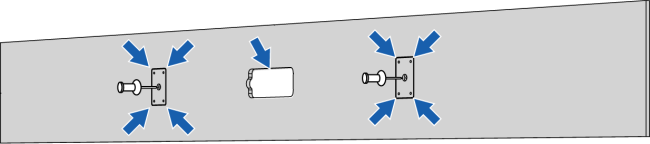

1. Level and pin the template to the wall using the supplied push pins. Outline the wire hole and eight screw holes (total) for the two mounting posts. Remove the template from the wall.

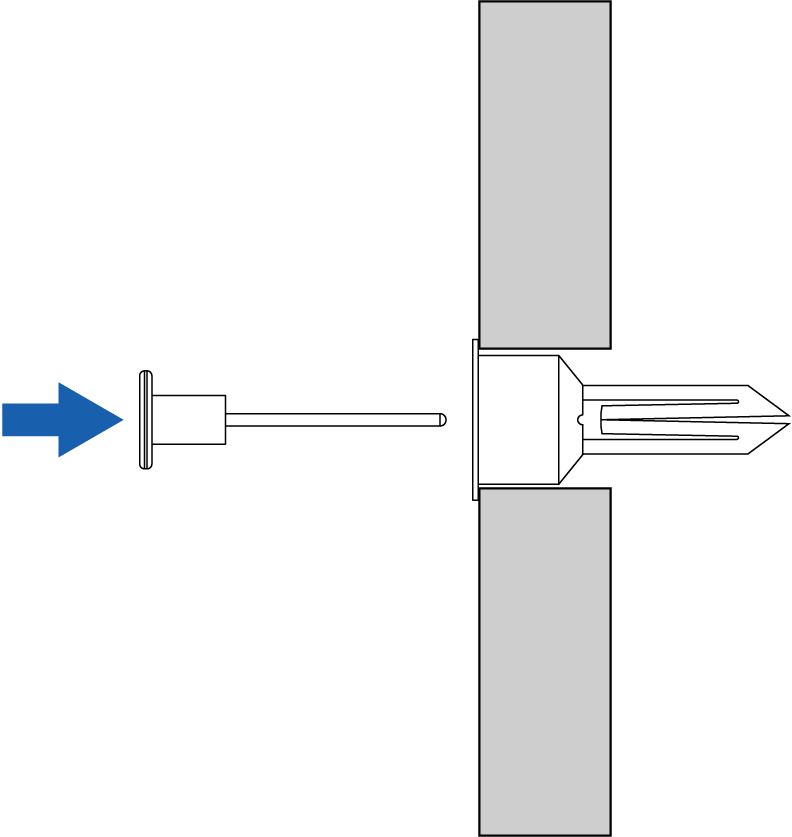

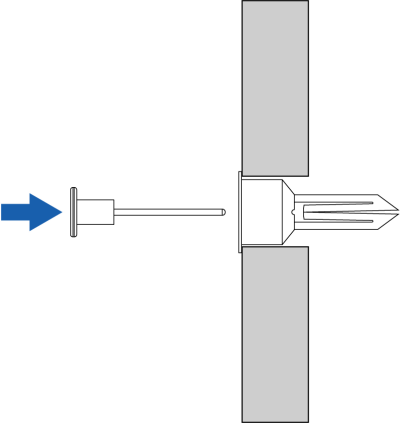

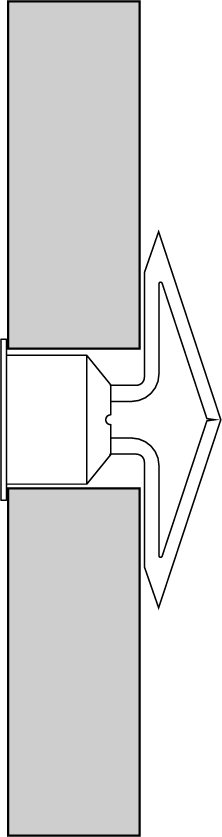

2. Cut out the wire hole. Install toggle anchors if there are no studs. When the anchors are in the drywall, pop them open with the included key.

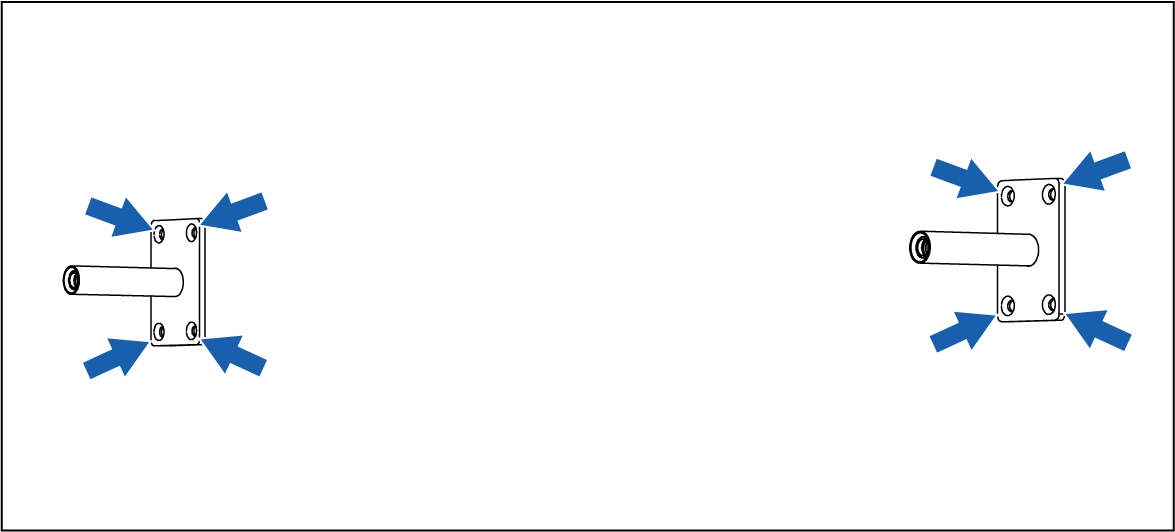

3. Then fasten the mounting posts to the wall using four screws per post.



4. Pull the speaker wires through the wire hole and attach them to the binding posts.

Caution: -. Be sure to preserve correct polarity (red to red) with the amplifier and to avoid stray strands shorting between binding posts.

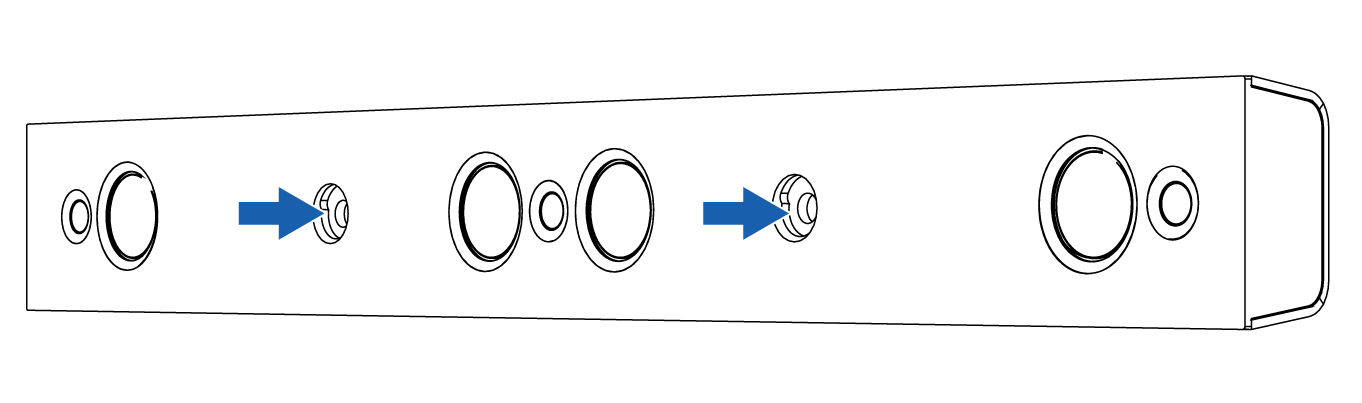

5. Mount the soundbar onto the posts.

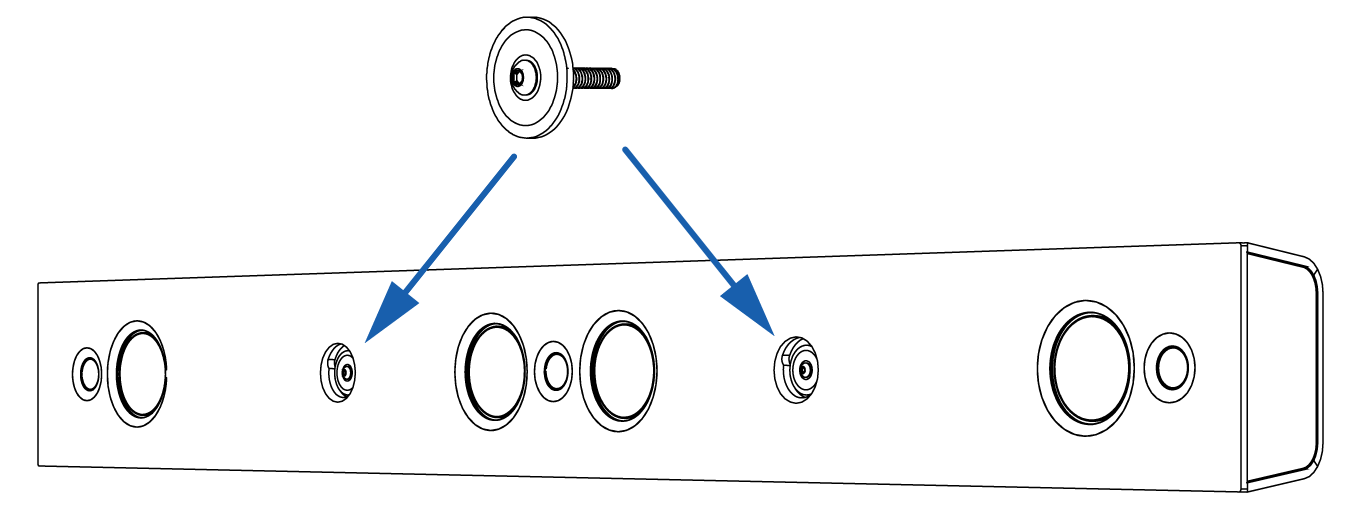

6. Loosely tighten the screws. Level or align the soundbar as needed, then tighten the screws.

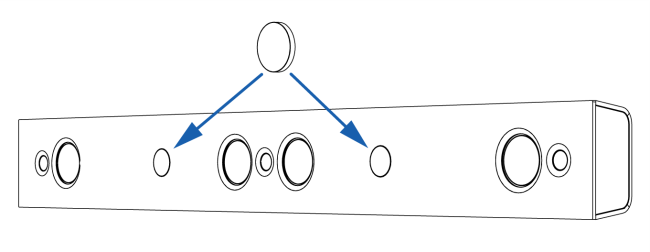

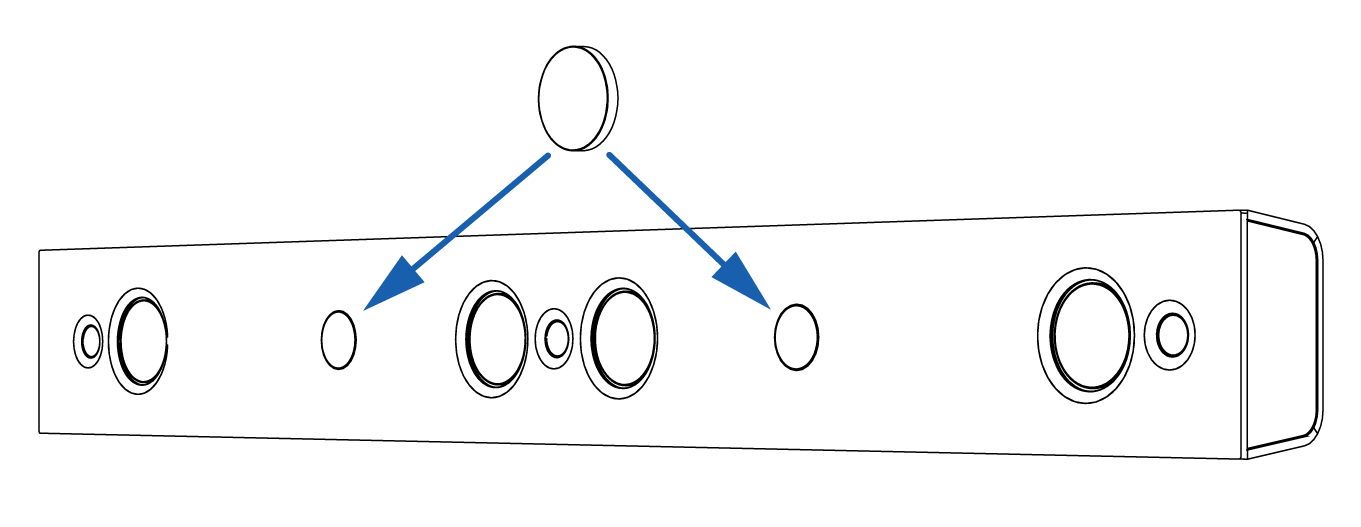

7. Snap the magnetic caps onto the mounting screws.

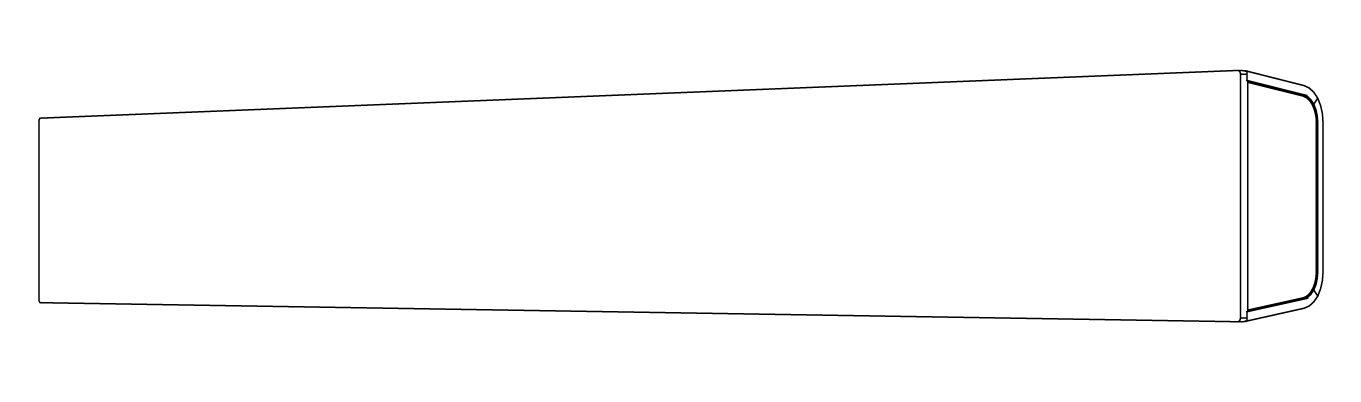

8. Align the front of the magnetic grille with the soundbar and snap it in place.
