Episode Response Amp API Overview

Design Points

• TCP connections are used to control the amplifier with a third party device

• Authorization is required for each TCP connection

• Control data is sent as a C/C++ style string, i.e. NULL-terminated string

• The string is encoded with UTF-8, formatted in JSON

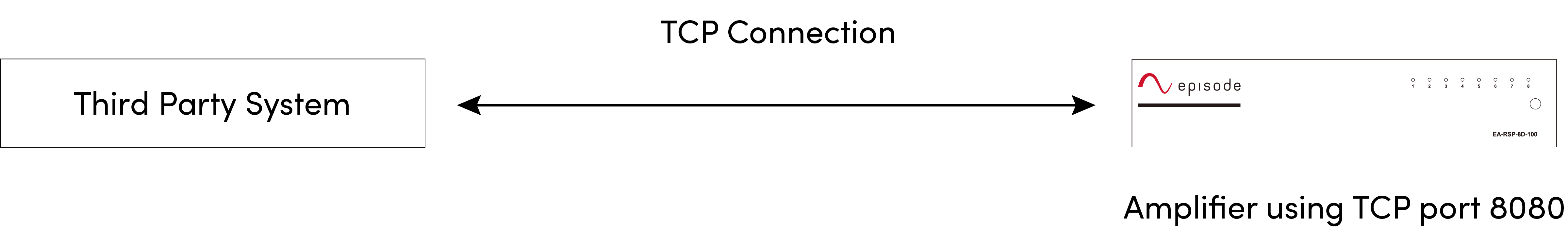

Connection Scenario

The amplifier's TCP server is listening for a third party TCP client.

Note: -__.Port 8080 can be configured dynamically.

The TCP connection can support up to 10 simultaneous connections.

Status Code

All the amplifier's data is displayed as an integer in the JSON field. Use the table below determine the integer’s meaning.

Integer	Meaning
200	Success
300	Repeat operation
400	User or password error
401	Illegal request
402	Log in first
403	The default password is being used and needs to be updated
405	User is signed out
406	Too many incorrect password attempts and the user is locked out
407	Re-enter the password
408	Password has been set successfully
500	An unknown error has occurred on the server
600	The import file does not exist
601	MD5 values do not match
602	File type mismatch
700	The amplifier is in standby mode
701	The amplifier is in Voltage Trigger mode
702	The machine is in Audio mode
800	Successful update
801	Failed update
