Disconnecting or removing control/AV connections

Use the Connections view to remove and disconnect a connection.

To disconnect or remove a Control/AV connection:

  1. Start Composer Pro and connect to a Director.
  1. Click Connections.
  2. Click the Control/AV tab.
  3. In the Control/AV project tree, select a device for the device’s control and AV connections to appear.

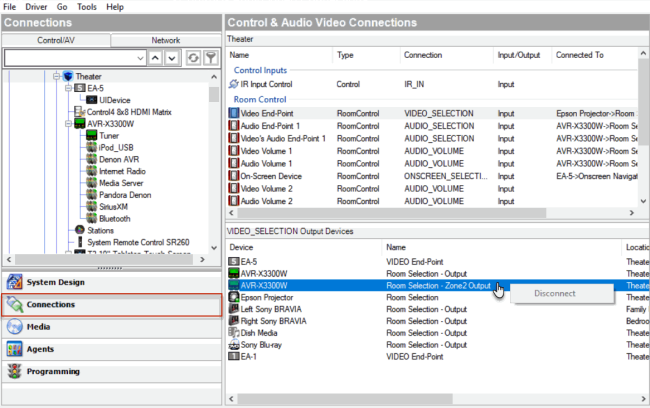

  4. In the Control and AV Connections pane, right-click an input (or output) connection and select Disconnect.
