Configuring a Zigbee IO and Zigbee Contact

Ensure the Zigbee IO or Zigbee Contact is installed as described in their respective Installation Guide.

• Zigbee IO Installation Guide (ctrl4.co/z2io-ig)

• Zigbee Contact Installation Guide (ctrl4.co/z2c-ig)

To add and configure a Zigbee IO or Zigbee Contact:

1. To add the driver and identify the device see “How to add devices to a project.” Ensure that the Zigbee IO or Zigbee Contact driver is added to the project tree.

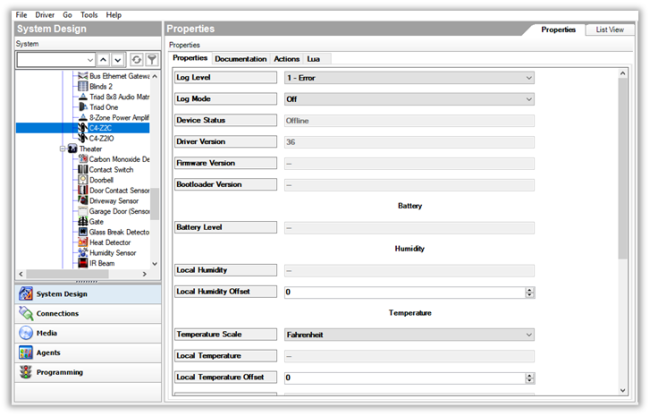

2. (Optional) To configure the properties, click System Design.

3. In the project tree, select the Zigbee IO or Zigbee Contact object.

4. View and change the properties in the Properties pane.


A full description of the device properties can be found in the Documentation tab.
