Configuring a 2-Button Keypad as a 3-way light

Use the Connections view to configure a 3-way light using a 2-button keypad.

Example: Configure a 2-Button Keypad to turn On (Top button) and turn Off (Bottom button) a dimmer, and to use the Push/Release function available on the 2-Button Keypad to dim a light.

Prerequisites

  1. Ensure that your controller hardware is added and identified to the Control4 system.
  1. Ensure that you have a 2-Button Keypad and dimmer (or switch) added and identified to the project.

To configure a 2-button keypad as a 3-way light:

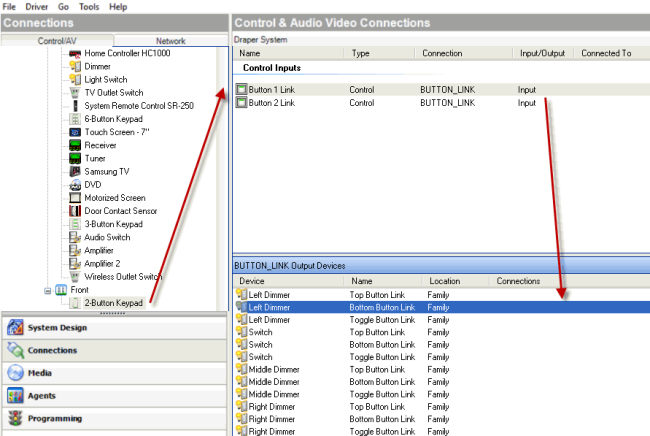

  1. In the project tree, select the 2-Button Keypad.
  1. In the Control & Audio Video Connections pane under Control Inputs, click the Button 1 Link connection, and drag it to the dimmer’s Top Button Link in the bottom pane.
  1. Click the Button 2 Link connection, and drag it to the dimmer’s Bottom Button Link in the bottom pane.

  1. Test to ensure that the 2-Button Keypad turns the light on and off, and that the Push/Release functions dim the light.
