Adding Z-Wave devices

After configuring your Z-Wave controller, add drivers corresponding to the Z-Wave devices to your project. Many Z-Wave device drivers will also need a motorization, sensor, or light driver, like a door or window driver, added into your Control4 project to represent the Z-Wave device in a Control4 Navigator.

Z-Wave device drivers

To add a Z-Wave device driver into your project:

  1. In System Design, enter the name of driver in the Search tab.

  2. Double-click on the driver to add it into the project. You can also right-click on the driver and select Add to Project to add the driver.

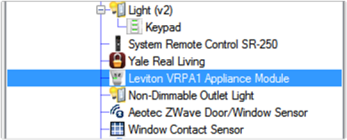

  1. If you have more than a couple Z-Wave devices, it is recommended that you rename this driver to help with troubleshooting multiple devices. Right-click on the driver and select Rename. Enter a descriptive name and press Enter.

Most Z-Wave device drivers will also need a motorization, sensor, or light driver. For example, a window contact sensor device driver also needs the Window Contact Sensor driver and an outlet module device driver needs the Z-Wave Dimmable Light (Outlet) driver.

Motorization, sensor, and light drivers

To add a motorization, sensor or light driver into your project:

  1. In System Design, enter the name of the driver in the search field in the Search tab.

  1. Double-click on the driver to add it into the project. You can also right-click on the driver and select Add to Project to add the driver.

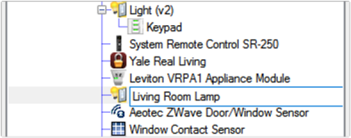

  1. This is the driver that will show up in the UI, rename the driver to represent the device it is controlling. Right-click on the driver and select Rename. Enter the name to be shown in the UI and press Enter.
