Configuring the residence project in Composer

  1. In Agents, click on the Communication agent.
  2. Select the Communication Server tab.
  3. Select Connect to a Communication Server in the Mode drop-down menu.
  4. Enter 10.0.0.10 (IP address of Communication Server) in the Communication Server IP Address field, and click Apply.

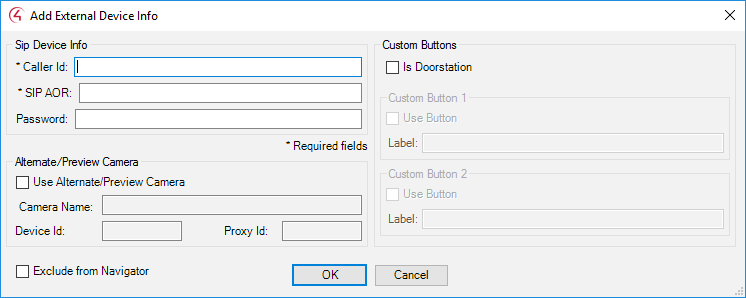

  5. In the Advanced tab, click Add Device.
  6. Enter Front Door for the Caller ID (or the name from Adding a door station).
  7. Enter the AOR for the DS2 door station: [username of the door station (common project)]@[IP address of Communication Server]. For example: [email protected].
  8. Select the box next to Is door station.
  9. To enable custom buttons on the Intercom call screen, select the box next to Use Button and enter the name for the custom button in the Label: field.
  10. Select checkbox for Exclude from Navigator to prevent calls to the front door.
  11. To get a call preview with image/video on a call from the DS2, select Use Alternate Camera, and select a 2N camera driver configured to pull an image/video from the DS2.
  12. Click OK.
  13. Refresh Navigators to enable call preview from door station to show up.
