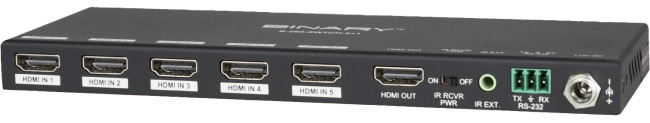

B-260-SWTCH-5X1

18Gbps HDMI 5x1 Switcher

Install Guide

Welcome to Binary™

This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This 18Gbps HDMI 5x1 Switcher is compatible with HDMI 2.0/ HDCP 2.2 and supports video resolutions up to 4K@60Hz 4:4:4 8bit.

Pro Tip: -_Connect the HDMI switch to a surge protector to extend the life of the product.

Features

  • HDMI 2.0 and HDCP 2.2 compliant

  • Supports video resolutions up to 4K2K@50/60Hz 4:4:4

  • 18Gbps video bandwidth

  • Supports 3D and HDR format video

  • Supported HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • Has an auto/manual switching mode for the input source

  • Supports CEC control

  • Flexible control via front panel buttons, IR remote or RS-232 commands



Package Contents

  • 1 × 18Gbps HDMI 5x1 Switcher

  • 1× IR remote

  • 1× 3pin-3.5mm phoenix connector (male)

  • 2× Mounting ears

  • 4× Machine screws (KM3*4)

  • 1× 12V/2A Locking power adapter

  • 1× Quick Start Guide QR card

Warning

The IR Remote supplied with this product contains a coin/button cell battery. Keep product and batteries away from children. Battery can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Seek immediate medical attention if it is suspected that a coin/button battery has been swallowed or placed inside any part of the body.
