Installing the switch

Caution: -.To avoid possible interference or damage, do not stack equipment on top of the switch.

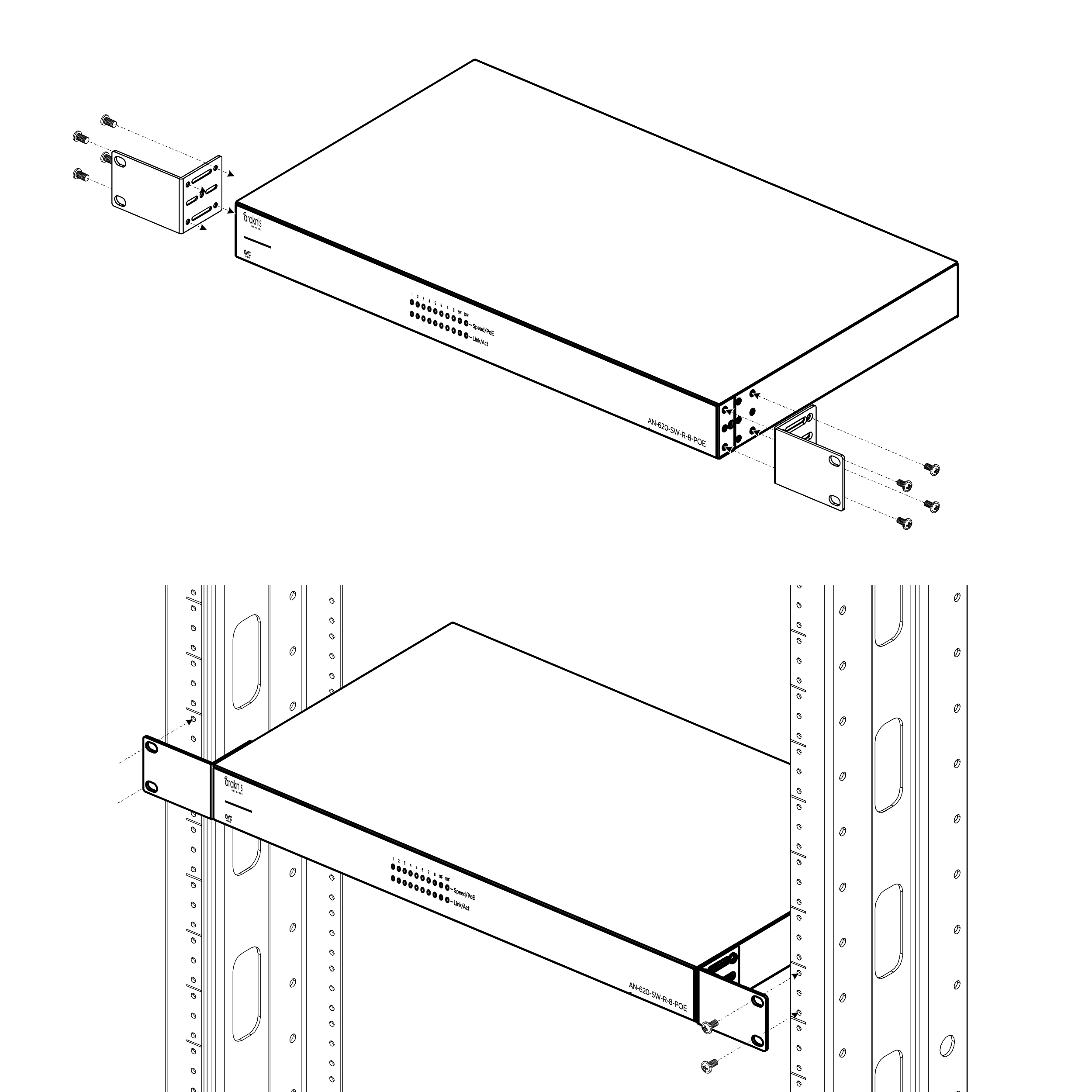

Rack mounting guidelines

• The maximum ambient temperature of the space the switch is installed in should not exceed 122 °F/50 °C.

• Allow to air flow through the rack.

• Verify all the leveling feet or casters are adjusted correctly and they come in contact with the supporting surface. Always load heavier equipment at the bottom of the rack.

• Make sure the rack is grounded and the equipment is surge protected.

• Do not overload the power equipment, or the switch. Check out our WattBox Best Practices for more information.
