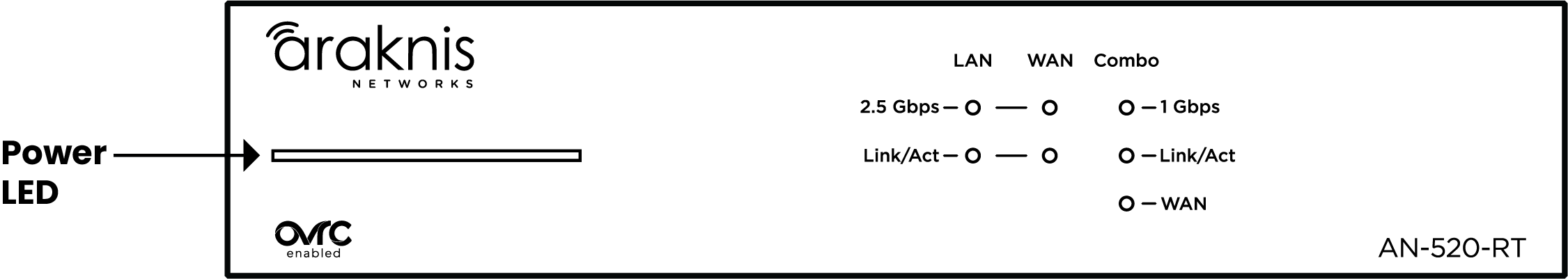

LEDs & reset procedures
|
LED |
LED State |
Description |
|---|---|---|
|
Power
|
On |
Router is powered on |
|
Off |
Router is powered off |
|
|
2.5 Gbps
|
On |
Connection speed is 2.5 Gbps |
|
Off |
Connection speed is 10/100/1000 Mbps |
|
|
1 Gbps
|
On |
Connection speed is 1 Gbps |
|
Off |
Connection speed is 10/100 Mbps |
|
|
Link/Act
|
On |
A device is connected to the port |
|
Blinking |
Packets are running through the port |
|
|
Off |
No device is connected to the port |
|
|
WAN LED
|
On |
Combo port is in WAN mode |
|
Off |
Combo port is in LAN mode |
Reset procedures
The reset button is on the back of the router.
|
Reset button action |
Front LED State |
Description |
|---|---|---|
|
Hold the reset button for 1-9 seconds |
Blinking slowly |
Restarts the router |
|
Hold the reset button for 10-19 seconds |
Blinking moderately |
Resets the username and password* |
|
Hold the reset button for 20 or more seconds |
Blinking rapidly |
Factory defaults the router |
*The Password Reset function must enabled in the router's local interface for this to work.
