System Status

The initial page, after login, is the System Status. This page provides a real-time summary of the access point’s system information. Use the screen to verify the settings and operation of your device.

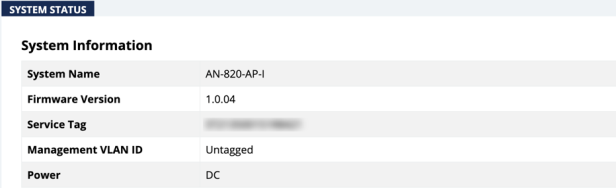

System Information

Displays the current information about the AP’s system settings.

Path: Status > System > System Information

Table Fields

  • System Name: The name assigned to the system. Used for configured name access.

  • Service Tag: Internal tracking number used to track every product sold by Araknis Networks.

  • Firmware Version: The urrent firmware version running on the access point.

  • Management VLAN ID: The VLAN that must be used to access the web interface.

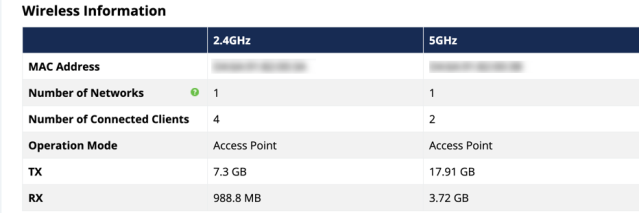

Wireless Information

Displays the current information about the wireless radio channel(s) in use.

Path: Status > System > Wireless Information

Table Fields

  • MAC Address: The individual Media Access Control (MAC) address assigned to the 2.4GHz and 5GHz radio interfaces.

  • Number of Networks: The number of active wireless networks (i.e. SSID’s) configured on the radio interface.

  • Number of Connected Clients: The number of currently connected wireless clients on all configured networks using the radio interface.

  • Operation Mode: Indicates that the radio is configured as an access point.

  • TX: The amount of data, in bytes, transmitted on the radio interface since the last power cycle.

  • RX: The amount of data, in bytes, received on the radio interface since the last power cycle.

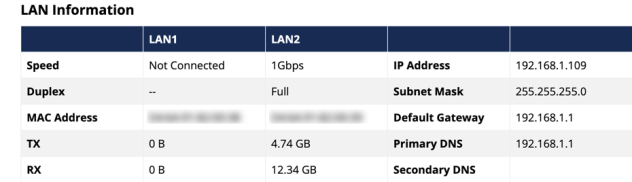

LAN Information

Displays the current LAN connection parameters.

Path: Status > System > LAN Information

Table Fields

  • Speed: Indicates negotiated LAN speed between the access point and the wired network.

  • Duplex: Indicates the negotiated duplex setting between the access point and the wired network.

  • MAC address: The MAC address assigned to the LAN port. LAN port 1 MAC address is always primary.

  • TX: The amount of data, in bytes, transmitted over the wired network connection.

  • RX: The amount of data, in bytes, received from the wired network connection.

  • IP Address: The access point’s IP address issued by the network router.

  • Subnet Mask: The access point’s subnet mask.

  • Default Gateway: The IP address of the router that assigned the access point an IP address.

  • Primary DNS: The primary DNS assigned to device.

  • Secondary DNS: The secondary DNS assigned to the device.

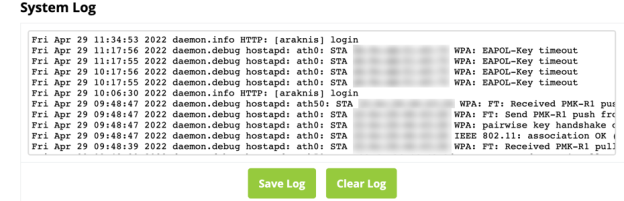

System Log

The System Log records changes to configuration, connections, security conditions, and more.

Path: Status > System > System Log

Options

  • Save Log: Click to view the log as a text file or save the log for future reference.

  • Clear Log: Click to permanently delete the contents of the System Log.
