LED Operation and Resets

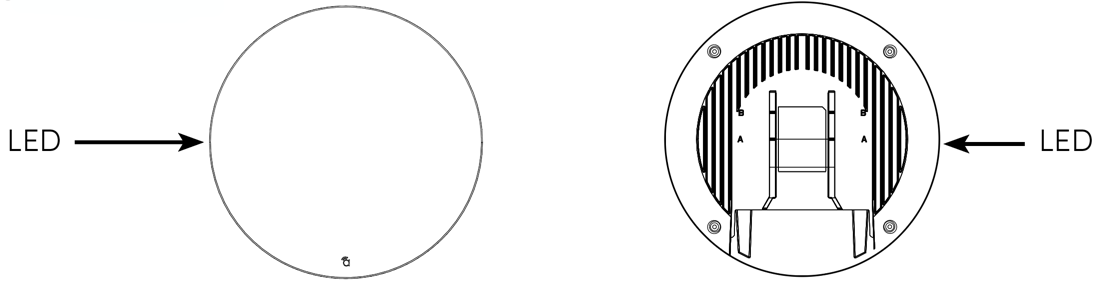

LED Behavior
|
AP State |
LED Behavior |
Description |
|---|---|---|
|
Operational States |
No LED |
The AP is not powered on. |
|
Solid White |
The AP is in the uboot stage of the startup process. |
|
|
Blinking White |
The AP is at the kernel stage of the startup process. |
|
|
Solid Blue |
The AP started correctly and is running in an operational state. |
|
|
Blinking Blue |
The AP is operational but is underpowered. |
|
|
Error States |
Blinking Orange |
The AP is not connected to the internet. |
|
Blinking Green |
The AP is updating it's firmware. |
|
|
Solid Orange |
The AP failed a firmware update and needs to be recovered. |
|
|
Solid Red |
The AP is non-functional. |
How to Perform a Hardware Factory Default
Press and hold the Reset button for more than 20 seconds. Release the button when the LED blinks red.
Allow two to four minutes for the AP to restart and load the factory default settings, then log into the AP using the default username and password (araknis; araknis) and configure the AP like new, or upload a configuration file.
|
Reset Button Action |
LED State |
Description |
|---|---|---|
|
Hold the reset button for 1-9 seconds |
Blinking Green |
Restarts the AP |
|
Hold the reset button for 10-19 seconds* |
Blinking Orange |
Only resets the username and password |
|
Hold the reset button for more than 20 seconds |
Blinking Red |
Resets the AP to factory defaults |
*This action is only available when the Reset Password toggle is disabled in the web interface.
